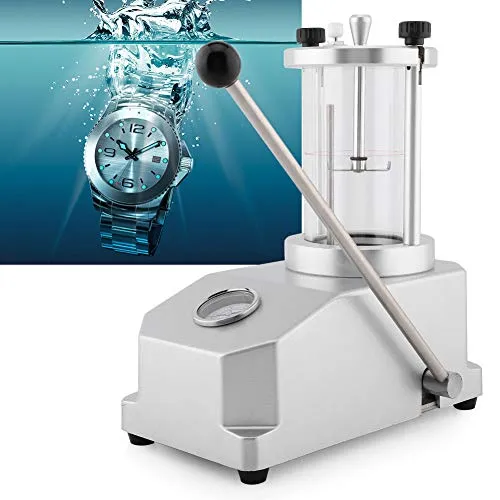

Watch Waterproof Tester Tool, Watches Case Resistance Pressure Test Machine Water Resistant Tester, Air Pressure



Specifications:
Condition: 100% Brand New
Material: Metal
Color: As Shown in Pictures
Pneumatic Test Range: 0.3-6.0 bar
Maximum Test Diameter: 65 mm / 2.6 inches
Maximum Test Height: 72 mm / 2.8 inches
External Air Pressure Connection: 6N
Cylinder Maximum Pressure: 10 bar
Cylinder Outer Diameter: 80 mm / 3.2 inches
Cylinder Inner Diameter: 65 mm / 2.6 inches
Cylinder Height: 138 mm / 5.4 inches
Size: Approx. 24 * 14 * 27 cm / 9.5 * 5.5 * 10.6 inches
Weight: Approx. 3800 g

Package List:
1 * Watch Waterproof Tester

Principle:
The device pressurizes the sealed box to simulate underwater conditions at depths of dozens of meters.

When the pressure is released, a pressure difference occurs between the inside and outside of the product, allowing for the observation of air bubbles in the event of a leak.

Usage Instructions:
1. Pull the watch lever fully.
2. Loosen the two screws and remove the lid.
3. Fill the container with water until it reaches the designated red line.
4. Hang your watch on the pole.
5. Secure the lid and tighten the screws.
6. Shake the pressure lever until reaching an air pressure of 3, which is the standard for the watch industry, and wait for three minutes to ensure air occupies the entire watch.
7. Press down on the pole to immerse the watch in water, then press the exhaust button to release air.
8. As the pressure decreases, watch for any bubbles. If bubbles appear, the watch seal is compromised; quickly retract the pole and remove the watch. No bubbles indicate a good seal.
