- PCW5000-FK includes the following components: PCW5000 gas powered portable capstan winch; PCA-1215M 12mm x 50m double-braided polyester rope; PCA-1259 60mm x 2.5m polyester sling; PCA-1274 stainless steel swing side snatch block pulley; PCA-1282 7mm grab hook; PCA-1290 skidding cone; PCA-1295 7mm x 2.1m choker chain with c-hook and steel rod; and two PCA-1276 steel locking carabiners.

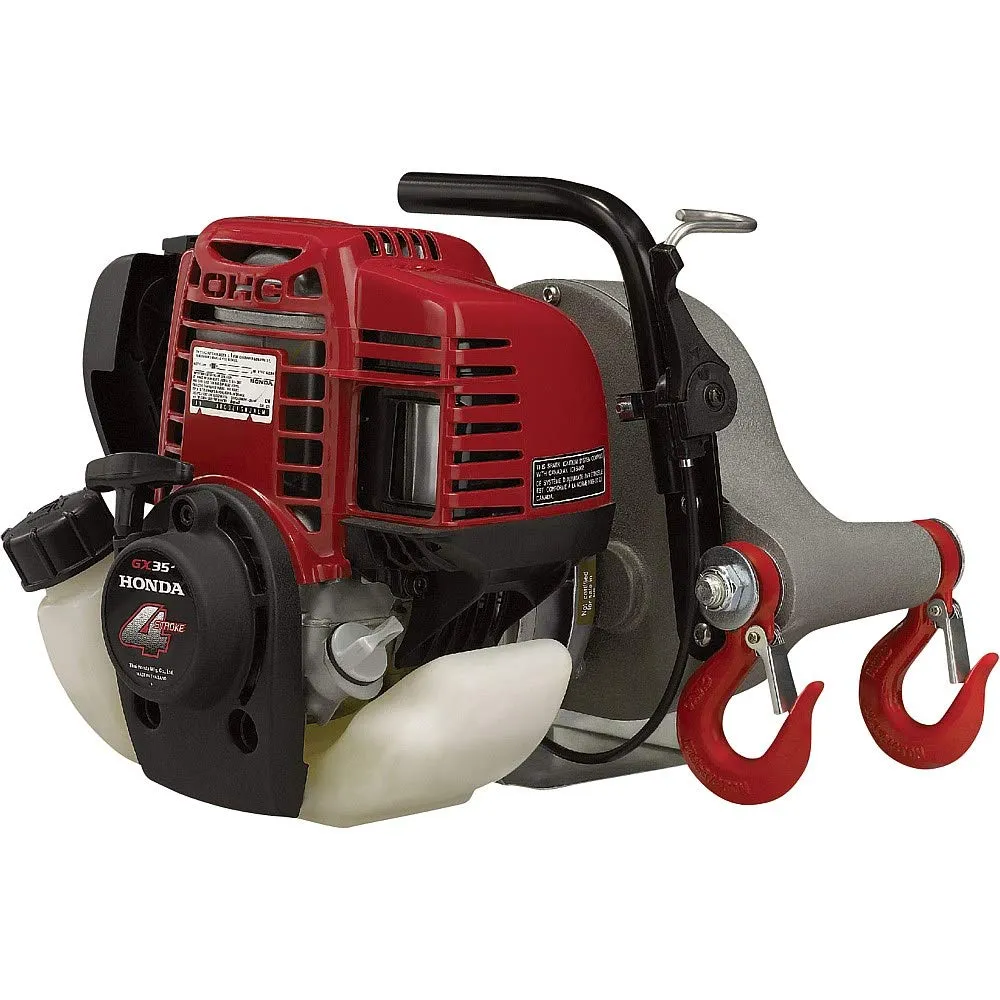

- PCW5000 Specifications: 4-stroke Honda GX-50cc engine; 57mm diameter capstan drum; 1000 kg single line max. pulling force/2000 kg double line max. pulling force; 12m/min pulling speed; 110:1 gear ratio; minimum rope diameter 10mm/ideal 12 mm/maximum 16mm; continuous work cycle; 1-year commercial warranty and 5-year personal use warranty.
- PCW5000 Features: lightweight and portable; constant pulling power; capstan design allows for unlimited rope length because rope does not accumulate on drum; designed for synthetic, polyester rope, which has low stretch properties and is easy to work with; quick-anchoring.
- Skidding cone accommodates logs up to 20" (50 cm) in diameter, or a bundle of smaller logs, and is durable down to -22 degrees F (-30 degrees C)! Use the pulley, extra sling and carabiners to create a block-and-tackle system to double your pulling power or redirect your load!
- NOTE: Some pictures display equipment in use and may contain components not included in this kit but that are available separately.
Portable Winch's PCW5000-FK kit is specifically designed for forestry applications. Built on their gas-powered PCW5000 portable capstan winch, this kit gives you all the tools you need to work safely and efficiently. The PCW5000 features a 4-stroke Honda GXH-50cc engine with a 1000kg single line pulling capacity. Also included in this kit are the following: 12mm x 50m double-braid polyester rope and storage bag; 60mm x 2.5m polyester sling with a 2000 kg (approx. 4400 lb) working load limit; a 7mm steel grab hook; a skidding cone with 50cm (20in) log diameter capacity; a 7mm x 2.1m choker chain with c-hook and steel rod; a stainless steel swing side snatch block pulley featuring a lightweight 100mm diameter deep groove aluminum sheave and stainless steel plates that swing open to install rope; and two steel locking carabiners. Use the pulley, sling and carabiners to create a block-and-tackle system to double your pulling capacity or redirect your load! This kit has all you need to retrieve your logs with ease! Notes: PCW5000 comes with a 1-year commercial use warranty and a 5-year private use warranty; one (1) 60mm x 2m polyester sling is included with every winch.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 15 x 15 x 15 inches; 35 Pounds
- Date First Available : August 13, 2011
- Manufacturer : Portable Winch
